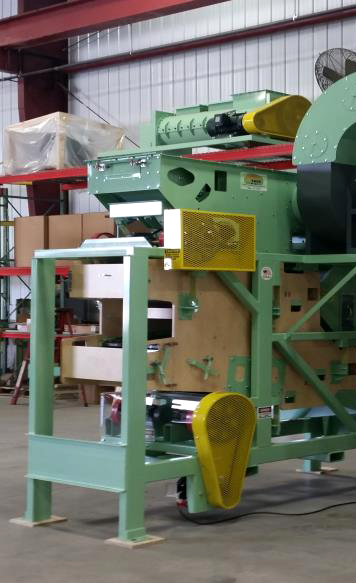

SMALL SCALE AIR SCREEN CLEANER

PRODUCT INFORMATION

  • Ideal for Research Quantities, Parent Seed, Small Lots, Vegetable and Specialty Seed–Unit Featured: 3 x 36 x 24 –1+1+1(Screen Size = (3) @ 24” W x 36” L)

  • Screen #1: Fixed Scalp; Screen #2: Scalp or Sift; Screen #3: Fixed Sift

  • Easily Accessible Allowing Thorough Clean Out Between Lots

  • Capacity: Approximately 25 to 40 Bushels/Hour –.7 to 1 Metric Ton/hour

  • In-feed/Preand Bottom/Post Aspiration for Removing Fines and Light Material

  • Optional Vibratory Feed Availablefor Gentle Handling and Uniform Flow

  • All Motors (Feed, Eccentric, & (2) Fans) are VFD Controlled for optimum performance/adjustability and energy efficiency

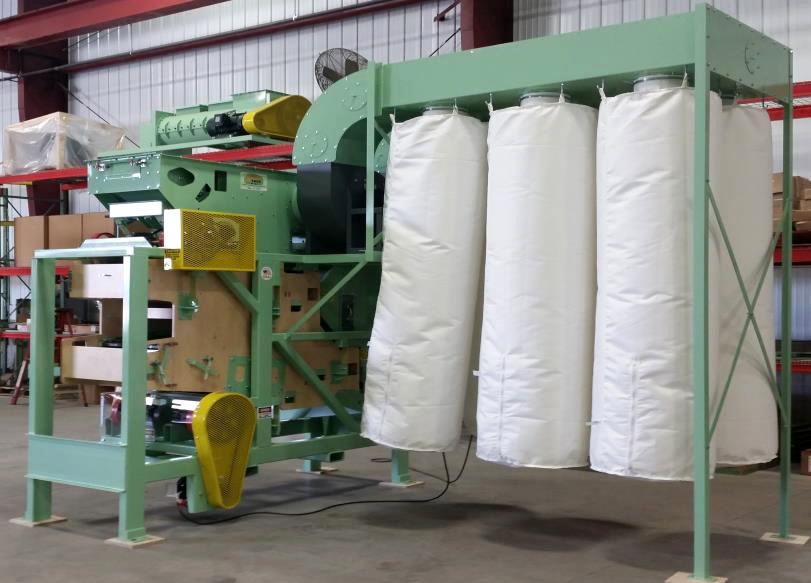

  • Illustrating the Typical “Stand Alone” status of this cleaner with Air/Dust Containment and Control Filter Bag Assembly

  • Allows this Small Scale Unit to be Completely Self Contained and Operate Independently in Various Facility Floor Plans

  • Incorporates Many of the Same Robust Design and Construction Features of our Large Scale Air Screen Cleaner Product Line



Download PDF
FLOW DIAGRAM

Flow Diagram_SmallScale
